Innowalk Pro

Innowalk Pro

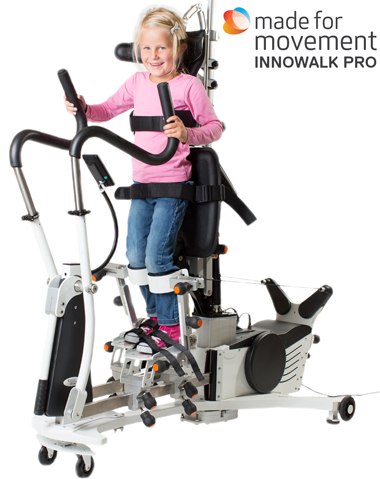

The Innowalk Pro is a robotic rehabilitation trainer allowing patients with severe physical disabilities to stand and move by offering exceptional flexibility in adjustment and support.



High intensity training

Innowalk Pro allows for early mobilization with high intensity, which prevents contractures and deformities in addition to reducing A 30 minutes session is around 2000 steps (65 RPM).



Quick and easy customization

The robotic rehabilitation trainer is easily and quickly adjusted to individual sizes and different needs, for both ambulatory and non-ambulatory patients.



Flexibility boosts training efficiency

This adaptive trainer caters even for changes in patient vitality, always being able to utilize training sessions in clinical practices.



New wide size range accommodates adult patients

Innowalk Pro is now available for patients up to 190 cm and 90 kg.





Download Innowalk brochure (7.1 mb)



THE INNOWALK PRO - SIZE RANGE





Daten und Masse Innowalk Pro small

Data and mass Innowalk Pro small

Range of application: Body height: 100 – 145 cm, Body weight: up to 65 kg



Max Width: 63 cm
Maximum length: 95 cm
Standing height: 140 cm
Weight without shoes: 27,5 kg
Weight: 120 kg
Power supply: 100-240V, output 24V
Operating temperature: +5 to +45 °C
Storage temperature: +5 to +65 °C
Relative Humidity: 35 - 70 %
Air pressure: 970 - 1030 hPa





Data and mass Innowalk Pro large

Data and mass Innowalk Pro large

Range of application: Body height: 145 – 190 cm, Body weight: up to 95 kg



Max Width: 76 cm
Maximum length: 150 cm
Standing height: 210 cm
Weight without shoes: 78 kg
Weight: 130 kg
Power supply: 100-240V, output 24V
Operating temperature: +5 to +45 °C
Storage temperature: +5 to +65 °C
Relative Humidity: 35 - 70 %
Air pressure: 970 - 1030 hPa


Optional Clinical package

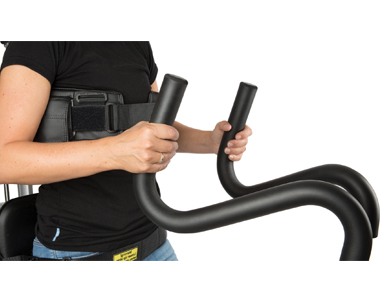

Arm-movement handles

Arm-movement handles

  • Stimulate arm and hand function
  • Increased training effect

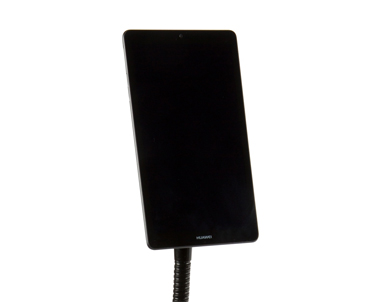

Display

Display

  • Number of steps
  • Time
  • Speed

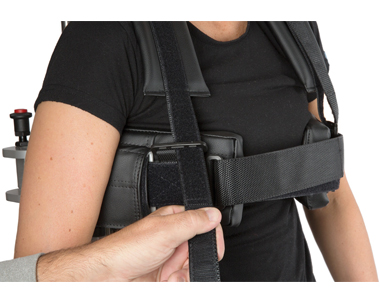

Shoulder-straps

Shoulder-straps

  • Upper body support

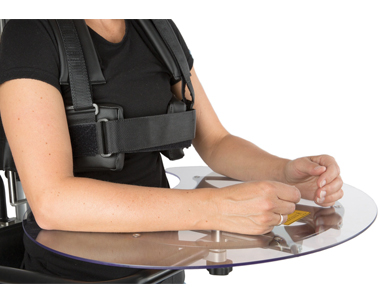

Table

Table

  • For playing and activities
  • Social interaction with others
  • Support of hands and forearms for better stability
  • Increases the feeling of security

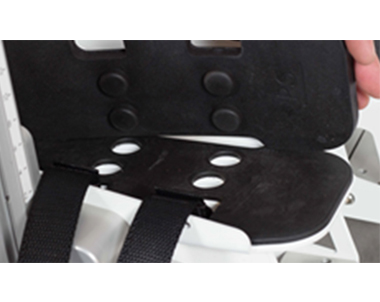

Build Up Sole

Build Up Sole

  • Use extra sole to compensate for different leg lengths

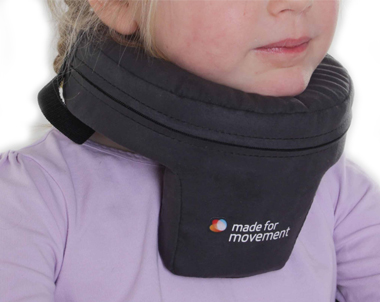

Neck support (S, M, L)

Available accessories: Neck support (S, M, L)

  • Provides extra support for the head

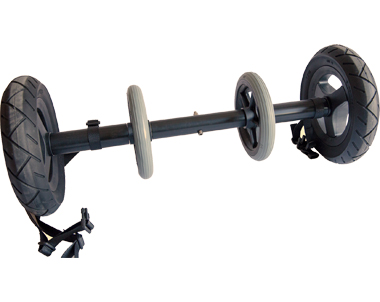

Transport trolley

Available accessories: Transport trolley

  • Enables safe transport



Innowalk Pro in practice

Here a few links to videos which show the Innowalk Pro in practice.
